Kramer VS-21DT

2x1 4K60 4:2:0 HDCP 2.2 HDMI Auto Switcher over HDBaseT

  • Max. Data Rate — 8.91Gbps
  • 4K@60Hz (4:2:0) resolution support
  • HDCP 2.2 compliant

Download Specsheet

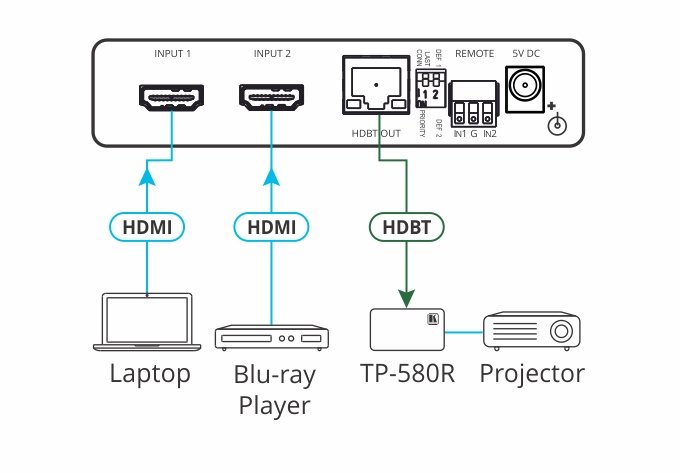

VS−21DT is a high−performance automatic switcher for 4K, HDBaseT, HDMI, HDCP 2.2 video signals. Offering priority and last−connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

  • Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
  • Max. Resolution — 4K@60Hz (4:2:0).
  • HDCP 2.2 Compliant.
  • Supports HDBT 1.0 extension up to 40m reach at 4K@60Hz (4:2:0).
  • Kramer Equalization and re–Klocking Technology.
  • HDTV Compatible.
  • 3D Pass–Though.

Inputs

  • 2 HDMI: On female HDMI connectors

Outputs

  • 1 HDBT 1.0: On an RJ–45 connector

Video

  • Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
  • Max. Resolution: 4K@60Hz (4:2:0)
  • Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)

User Interface

  • Controls: DIP–switches for selecting switching mode (Priority/Last Connected), contact closure connectors for remote control switches
  • Indicators: Active input, switching mode (Priority/Last Connected) and ON

Power

  • Source: 5V DC
  • Consumption: 1A

Regulatory Compliance

  • EMC EN 55032
  • IEC 60950–1(ed.2)
  • IEC 60950–1(ed.2)am1
  • IEC 60950–1(ed.2)am2

Environmental Conditions

  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing

Accessories

  • Included: 5V DC power adapter

Product Dimensions

  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

Product Weight

  • 0.2kg (0.4lbs) approx.

Shipping Dimensions

  • 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H

Shipping Weight

  • 0.5kg (1.1lbs) approx.

Applications

  • Classrooms
  • Huddle rooms
  • Training rooms
